Custom Wireless Charging Power Bank PCBA with Q-factor Wake-up Function
– Q-factor wake-up function: auto trigger wireless charging when phone attaches, no button needed

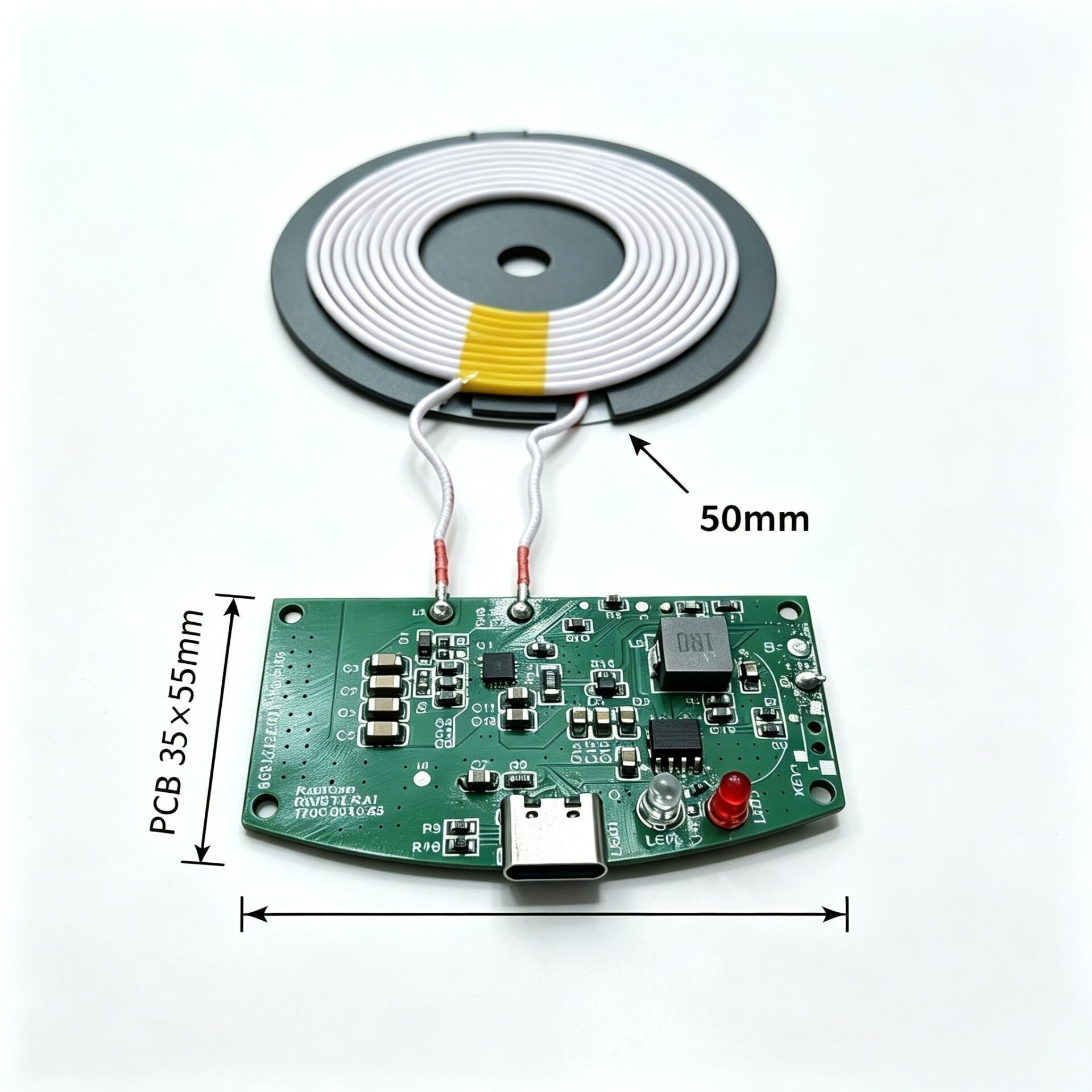

– PCB dimension: 35mm*55mm, matched with Ø50mm wireless charging coil

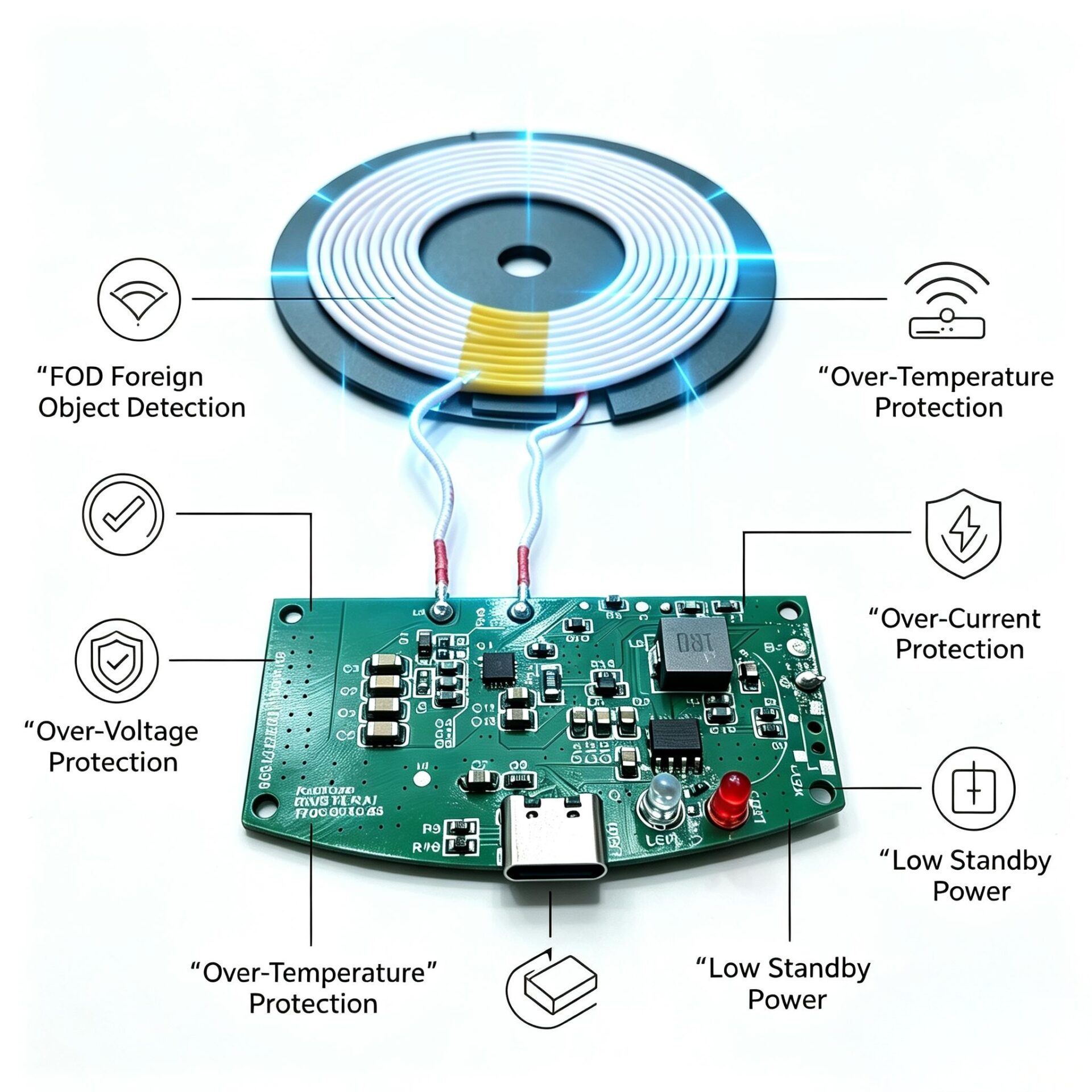

– Built-in FOD foreign object detection & multi safety protection (OVP/OCP/OTP)
– Low standby power consumption, stable resonant performance

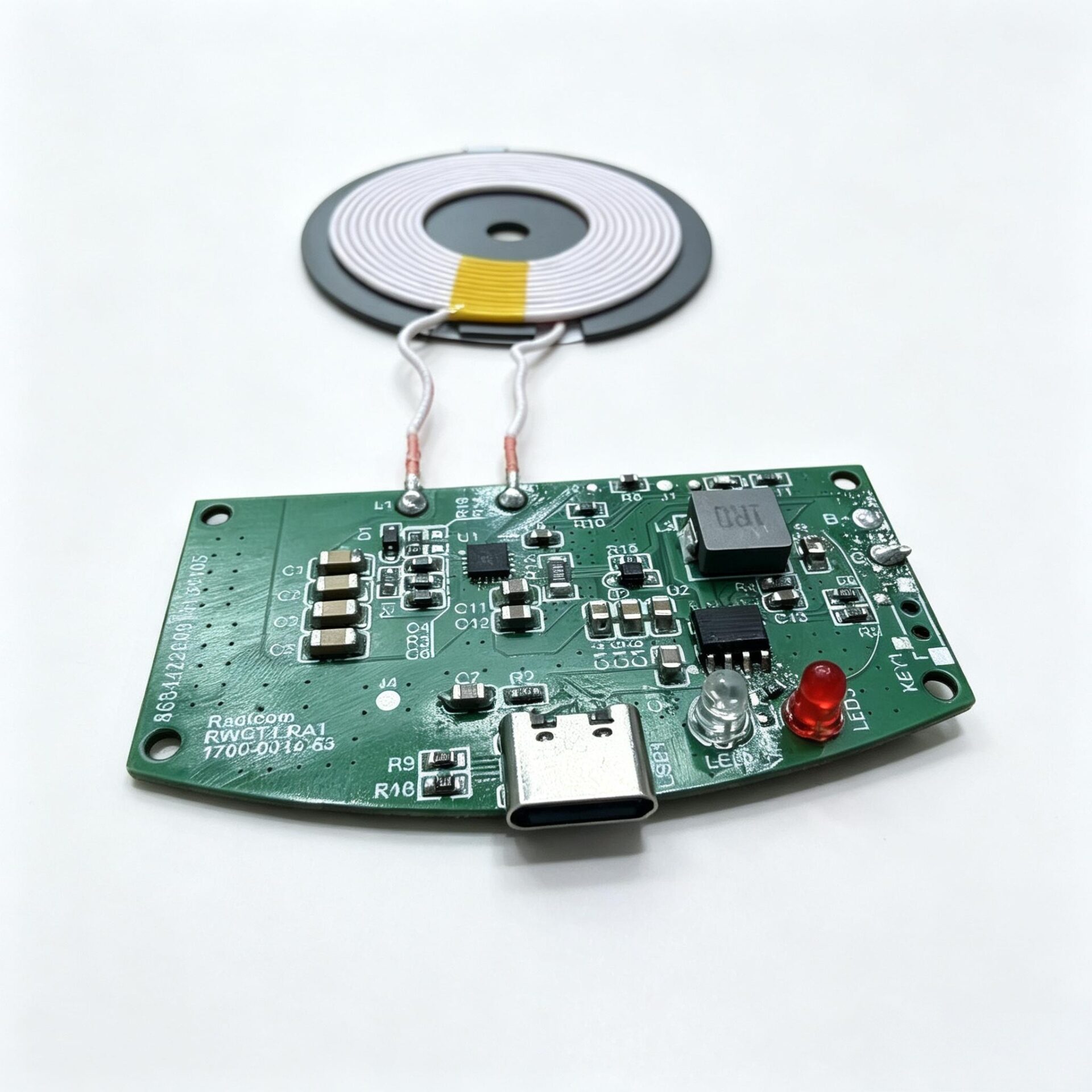

– Complete power bank wireless charging circuit board for DIY & mass production
Description

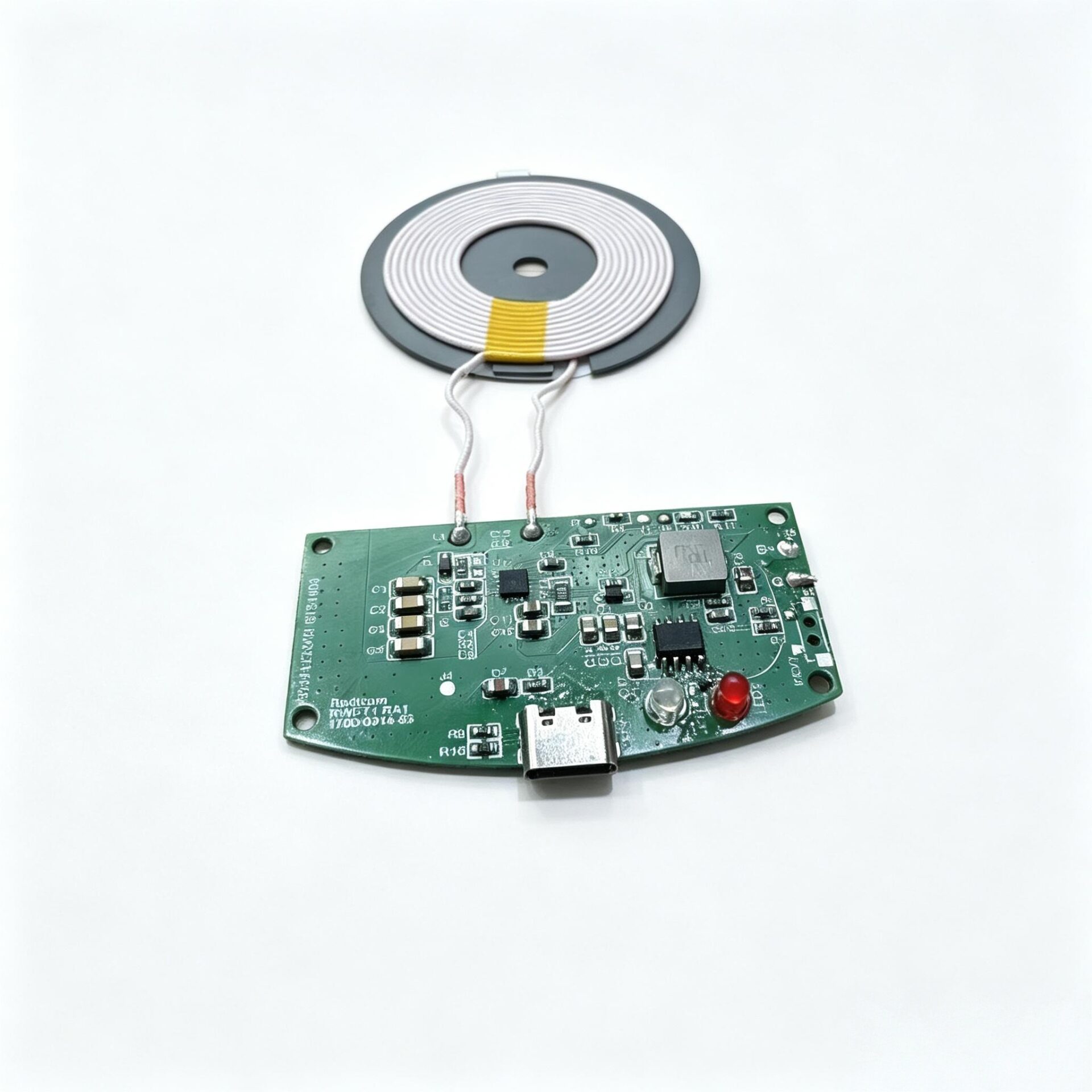

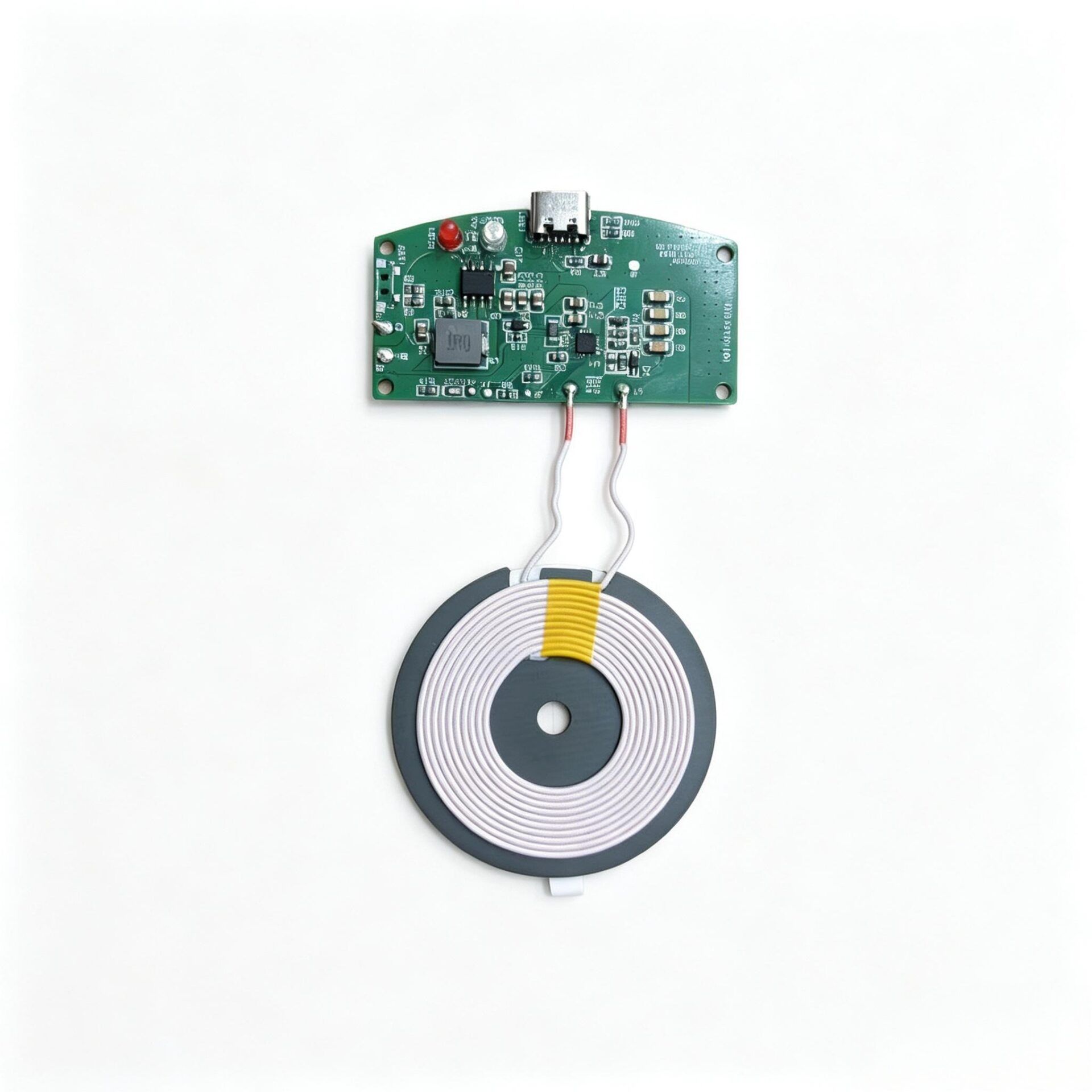

This is a complete wireless charging power bank PCBA module with Q-factor wake-up function. When a magnetic wireless charging phone attaches to the coil, the board automatically wakes up and starts wireless charging, no button operation required. The PCB size is 35mm*55mm, matched with Ø50mm wireless charging coil. It integrates FOD foreign object detection, over voltage, over current and temperature protection. Low standby power consumption, stable performance for magnetic power bank assembly.
power bank PCBA, wireless charging PCBA module, Q-factor wake up wireless charger, magnetic wireless charging PCBA, power bank circuit board, Qi wireless charging PCBA, FOD foreign object detection PCBA
– Q-factor wake-up function: auto trigger wireless charging when phone attaches, no button needed
– PCB dimension: 35mm*55mm, matched with Ø50mm wireless charging coil
– Built-in FOD foreign object detection & multi safety protection (OVP/OCP/OTP)
– Low standby power consumption, stable resonant performance
– Complete power bank wireless charging circuit board for DIY & mass production
